Introduction:

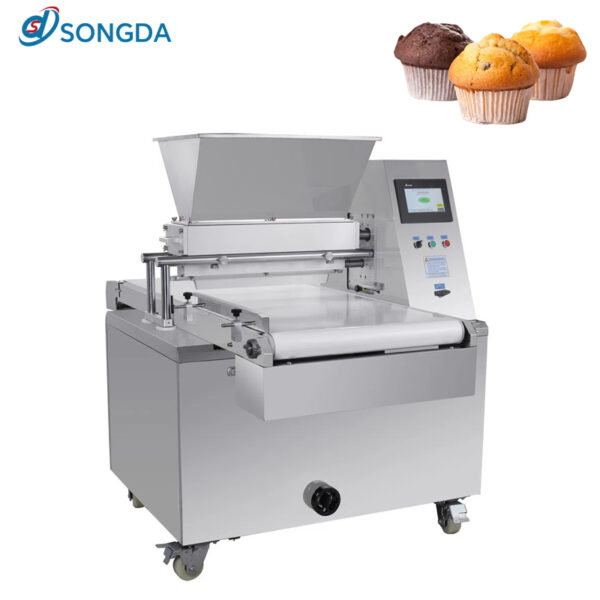

This machine is automatic computerized cake depositing machine. It is for filling raw material into cake molds to achieve cake shaping.
Features
1. Adapt to different coatings such as eggs, jams and chocolates.
2. PLC intelligent control, electric and pneumatic effective integration.
3. Accurate grouting volume.
4. The equipment is easy to clean, and the efficiency is high.

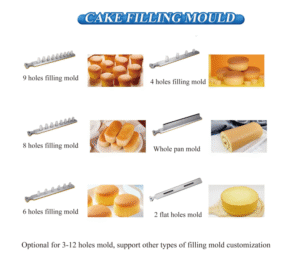

5. It is convenient to change the mold. This machine is suitable for all 600*400 baking trays (also available according to
customer’s baking tray size).
6. Can be equipped with production line operation or stand-alone.
Specification
| Model | Voltage | Weight | Capacity | Belt width | Dimension | Power |
| SD-CB400 | 220/380v | 350KG | 25 rows/min | 420mm | 930*1550*1410 | 1.2Kw |
| SD-CB600 | 220/380v | 450KG | 25 rows/min | 620mm | 1130*1550*1410 | 1.5Kw |
