Features

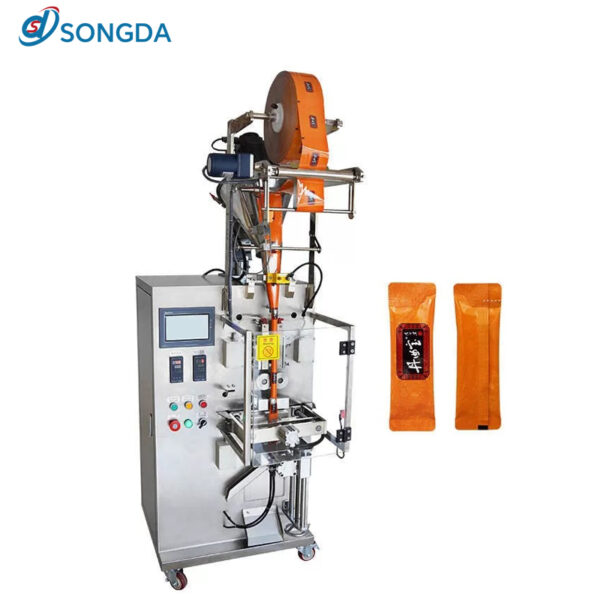

1) Automatic powder packing machine can finish the process like conveying bag, bag making, filling, weighing, sealing, cutting, counting, lot number, etc.
2) Imported Mitsubishi, Japan PLC control, Chinese and English intelligent screen, stainless steel cabinet.
3) Stepper Motor control, this system has the advantage of precise, needless to adjust the other parts.
4) Intelligent temperature control by temperature controller to make heat balance better. use bilingual display screen control system and stainless steel cabinet.
5) Fine packaging performance ,low noise , sealing texture and strong sealing performance.
6) With safe plastic box on rotating blade to avoid hurting operator’s hands.
7) It has color system controller, so that can get the complete trade mark design.
8)With printer
| Type | SD-60FZ | SD-60FB | SD-420D |
| Packaging speed | 40-60bags/min | 40-60bags/min | 10-50 bags/min |
| Measuring range | 0.5-80ml | 0.5-90ml | 10-2000ml |
| Bag size(mm) |
L:40-140W:30-110 |
L:40-160 W:30-110 |
L:50-300 W:80-200 |
| Max film | 220mm | 240mm | 420mm |
| Sealing type | 3/4 sides sealing | back sides sealing | Pillow bag, stand up pouch, pillow with hole pouch, continuous bag |
| Power | 1200W | 1200W | 2.5KW |
| Net weight | 230kg | 250kg | 650kg |
| Voltage | 220V,380V/50Hz,60Hz | ||
| Packaging film | Paper/PE,PP/Aluminum foil(all heating material) | ||
| Overall size(mm) | L800*W700*H1600 | L2250*W970*H2700 | |
