Item
|

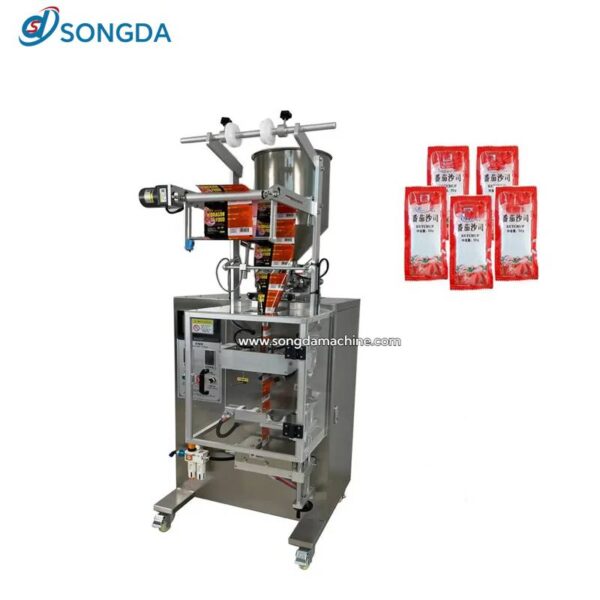

Automatic Liquid or Paste Packing machine
|
|
Model
|
SD-240Y
|
|
Sealing Method
|
heat sealing
|
|
Filling System
|
Piston pump or megnatic pump
|
|
Packing Speed
|
20-60 bags/min
|
|
Bag Size
|
Bag Length 40-170mm, bag Width 15-120mm
|
|
Filling range
|
Packing volume can be adjusted, depends on your packing variety and packing volume
|
|
Bag Type
|
Four sides sealed bags or three sides sealed bags or back sealed bags
|
|
Cutting type
|
Flat cutting or wave cutting
|
|
Date printer
|
Optional to choose
|
|
Control system
|
Mitsubishi PLC+ screen
|
|
Air Consumpion
|
≥0.6Mpa, 0.4m³/min
|
|
Power
|
220V Single phase 50/60Hz
|
|
weight
|
200 kg
|
|
Overall Dimensions
|
L1000mm*W800mm*H1700 (mm) Package size
|
Features:
1) All the Electronic components adopt international famous brand excluding motor, the motor use regular domestic brand.
2) The raw material of the products adopts stainless steel.
2) Mitsubishi PLC control system
3) English panel
4) Noiseless stepping motor to improve steady working condition and decrease vibrator and noise.
5) Can get a perfect pictures when the packing material with color code.
6) This machine is easy to operate and maintain.
7) This machine can finish pulling, forming, fulfilling, measuring, sealing, cutting, printing automatically.
